工业宽带信号放大器

100 kHz ... 20000 MHz



贝克尔公司提供覆盖面广泛的宽带放大器产品组合,其中包括所有常见的通讯标准(蜂窝通信,卫星通信,TETRA / BOS,GNSS,GPS,802.11)以及LTE-U等新频段。紧凑型机架或19英寸机架可放置非常高效的放大器模块,这些模块主要针对短波以及频率高达18 GHz的高频与超高频范围(L波段、S波段、C波段、X波段)。作为天线的前置放大器、激励级或增强器的变体,应用于隧道无线电、航空无线电监控、入耳式监控等广泛领域。




Model



Frequency
MHz

Power
dBm

Gain
dB

Short Description
Application

AMP101800030 10 ... 18000 + 30 25

1 W Ultra-Wideband Amplifier

wideband reception systems, R&D, Measuring Applications

AMP7610849L 76 ... 108 + 49 57

80 W Linear FM Power Amplifier

FM/IBOC, Multicarrier Signals, Driver for radiating cables

AMP17024048L 170 ... 240 + 48 55

60 W Linear DAB Power Amplifier

DAB, Multicarrier Signals, Driver for radiating cables

AMP300600040L

300...6000

+ 42

50

10 W power amplifier

5G (FR1), UMTS, LTE, Wi-Fi

UHF, SHF

AMP1053045

10 ... 530

+45

45

30 W linear amplifier

FM, DAB, BOS/TETRA

AMP1053043H

10 ... 530

+ 45

44.0

20 W V/UHF amplifier

broadcast, TETRA/BOS,

aeronautical radio

AMP20280035B

20 ... 2800

+ 35.5

36.0

4 W V/UHF amplifier

cellular, GSM, UMTS, LTE

AMP51505925-TRX

5150 ... 5925

+ 30 PEP

20

Wi-Fi TX/RX booster amplifier for

radiating cables

AMP2000600040L

2000 ... 6000

+ 40

40

13 W U/SHF power amplifier

5G (FR1), industrial

Wi-Fi, cellular

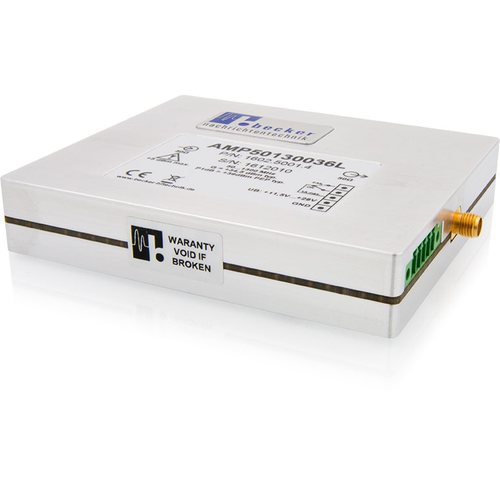

AMP50130036L

50 ... 1300

+ 36

34.5

4 W UHF amplifier

wireless studio technology

AMP590033

5 ... 900

+ 34

17.5

2 W V/UHF booster amplifier

broadcast, TETRA/BOS, ISM

AMP590033H

5 ... 900

+ 34

30.0

2 W V/UHF amplifier

F&E, experimental physics

AMP018032

0.1 ... 80

+ 32

18.5

1.5 W HF amplifier

short wave reception systems, EMV

AMP3060036L

30 ... 600

+ 36

35.5

4 W VHF amplifier

AMP3060036 without heat sink

AMP3060036

30 ... 600

+ 36

35.5

4 W VHF amplifier

broadcast, TETRA/BOS

tunnel and building radio

AMP5220031

5 ... 2200

+ 31

27.5

1 W V/UHF wideband amplifier

broadcast, cellular, ISM, GNSS

AMP5170033

5 ... 1700

+ 33

35.0

2 W amplifier

broadcast, cellular, ISM, GNSS

AMP5270026

5 ... 2700

+ 26

24.0

400 mW V/UHF amplifier

broadcast, cellular, ISM, GNSS

LNA1080014

10 ... 800

+14

13.5

400 mW low noise V/UHF

preamplifier

reception systems, ISM


智能功放

CW / 脉冲发生器、自动电平控制 (ALC)、VSWR 测量

iAMP1600047-R

2 Channel 50 W Power Amplifier with CW and Pulse Generator

1 ... 6000 MHz CW and Pulse Generator Guided Webinterface

Detail

iAMP1700980043-R

20 W High Power Scalar / Vector Amplifier and Signal Generator, 1700…9800 MHz

CW and Pulse Generator Guided Webinterface S-Parameter Measurement

Detail


iAMP300600040-R

10 W High Power Scalar / Vector Amplifier and Signal Generator, 300 … 6000 MHz

CW and Pulse Generator Guided Webinterface S-Parameter Measurement

Detail

iAMP300600047-R

50 W High Power Scalar / Vector Amplifier and Signal Generator 300…6000 MHz

CW and Pulse Generator Guided Webinterface S-Parameter Measurement

Detail



扩音器

模块、台式装置和 19" 机架设备

按上限频率排序

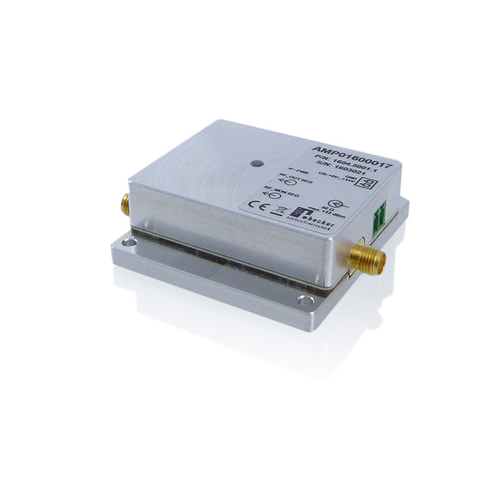

AMP01600017B

50 mW Wideband Amplifier

Instrument Amp

Detail

AMP5170033

2 W Wideband Amplifier

Detail

AMP1053045

30 W Linear Power Amplifier

Detail

AMP1053043H

20 W Power Amplifier

Detail


用于 AMP-L 放大器模块的通用 19" 设备平台

AMP LR SERIES 是一个 19" 2U 通用功放机架设备平台。客户可以选择最多配置四个相同频率范围的功放以增加输出功率,或者自由组合最多四个不同频率的功放频段作为多通道设置。

所有模块均由中央交流电源供电,背面板上有 N 型同轴连接器。它们中的大多数都有一个 DB9 连接器,用于触点闭合接口以监控设备状态。

AMP-LR SERIES

Universal Rack Amplifier Platform

individually configured delivery

Detail



Universal Heat Sink for AMP-L Amplifier Modules

Universal Heat Sink UHS-1 is a compact heat sink for cooling of medium and high-power amplifier modules from Becker Nachrichtentechnik. Up to two different AMP-L modules can be flexibly attached to the flat side of the heat sink. With the option of installing up to six fans, high cooling performance can be achieved. If active cooling is required for the customer application, the cooler will be delivered with pre-installed fans. The heatsink is also supplied individually prepared with captive screws depending on customer requirements. On the bottom side is has holes for mounting in housings by the customer.

UHS-1

Universal Heat Sink for AMP-L Amplifier Modules

passive and active cooling individually configured delivery

Detail
