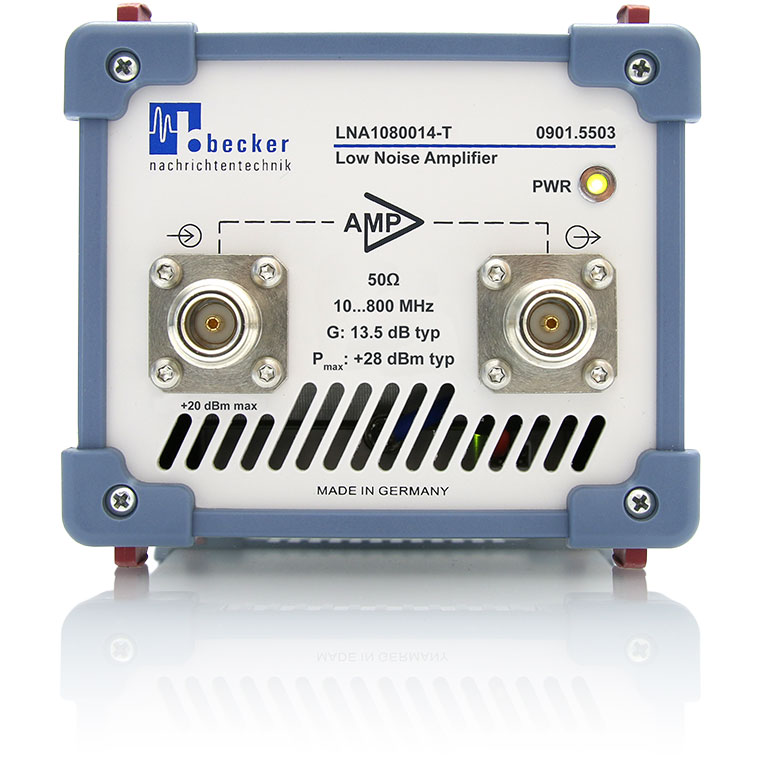

LNA1080014-T

600 mW Pre-Amplifier

LNA1080014-T (LNA = Low-Noise Amplifier) is a wideband amplifier with an extraordinary low noise figure. It is suitable for the frequency range 10 MHz … 800 MHz. In addition to its low noise figure, LNA1080014-T features very good linearity characteristics. This amplifier is designed for applications in the VHF and the lower UHF range. All amplifiers of the AMP series are designed in 50 Ohms technology.



Datasheet


Suitable for Demanding Applications

LNA1080014-T amplifies signals in the frequency range 10 MHz … 800 MHz. An internal highpass filter located at the input of the amplifier avoids influences of signals in the low frequency range. It features a low noise figure and high linearity. This device can be used as a preamplifier in VHF/UHF applications for example.

Designed for Practical Use

LNA1080014-T is designed as a tabletop device. The design ensures easy handling. The RF connectors are performed as N female connectors and the device is supplied by mains voltage. Thus, the amplifier can be connected without any additional equipment.

Robust at all Points

This amplifier offers excellent RF characteristics covered in compact and robust design. In addition to the solid design of the mechanics, the amplifier is also resistant against mismatches which can occur in operation with complex loads.





Related Products
  • LNA1080014
