AMP590033H-R

2 W Wideband Amplifier, 19" Rack Device

AMP590033H-R is a wideband amplifier with up to 2 W output power suitable for the frequency range 5 MHz … 900 MHz.

It stands out due to its linearity and high gain. The amplifier is designed for frequencies of the VHF and the lower UHF band and is often used in physical experiments dealing with quantum optics. All amplifiers of the AMP series are designed in 50 Ohms technology.

30 dB gain 33 dBm | 2 W

Datasheet


Suitable for Demanding Applications

AMP590033H-R amplifies signals in the frequency range 5 MHz … 900 MHz. It features high linearity, a low noise figure and high gain. This amplifier is especially designed for use as a booster module in VHF/UHF applications as well as in physical experiments dealing with quantum optics. An internal highpass filter located at the input of the amplifier avoids influences of signals in the low frequency range.

Designed for Practical Use

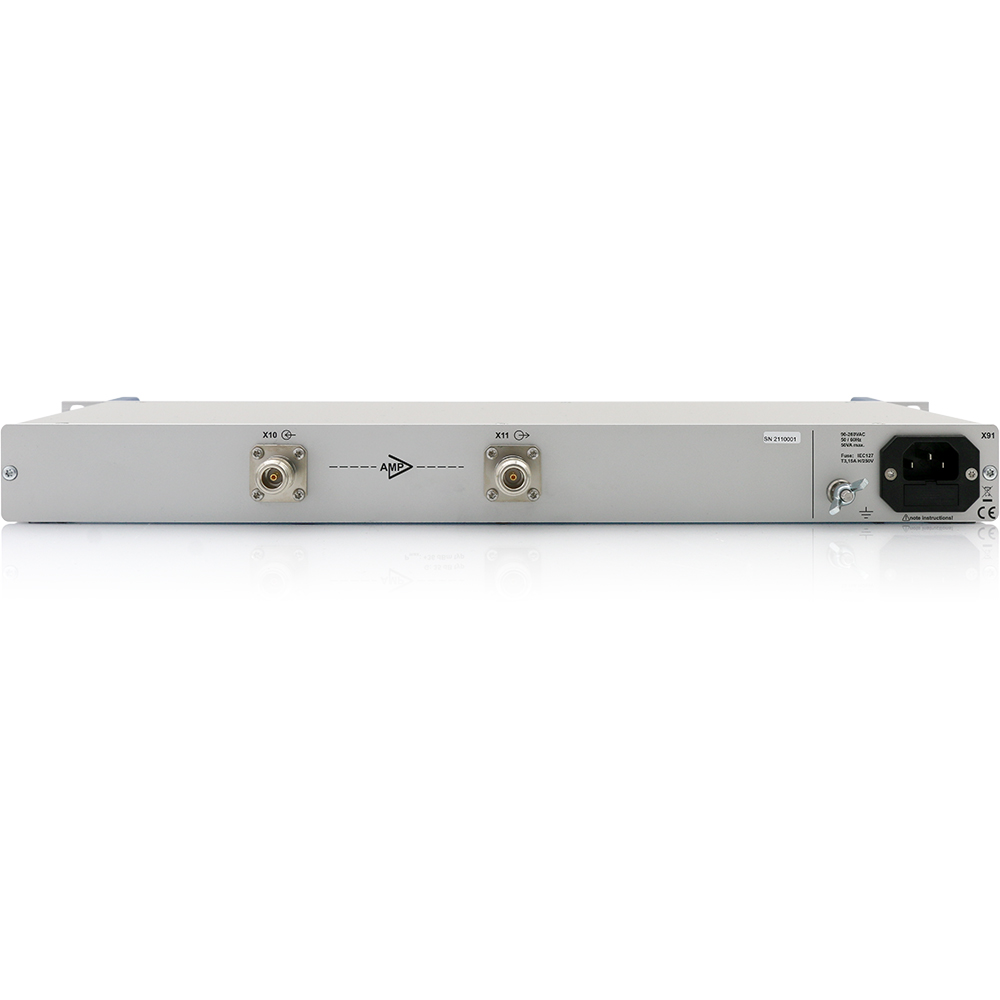

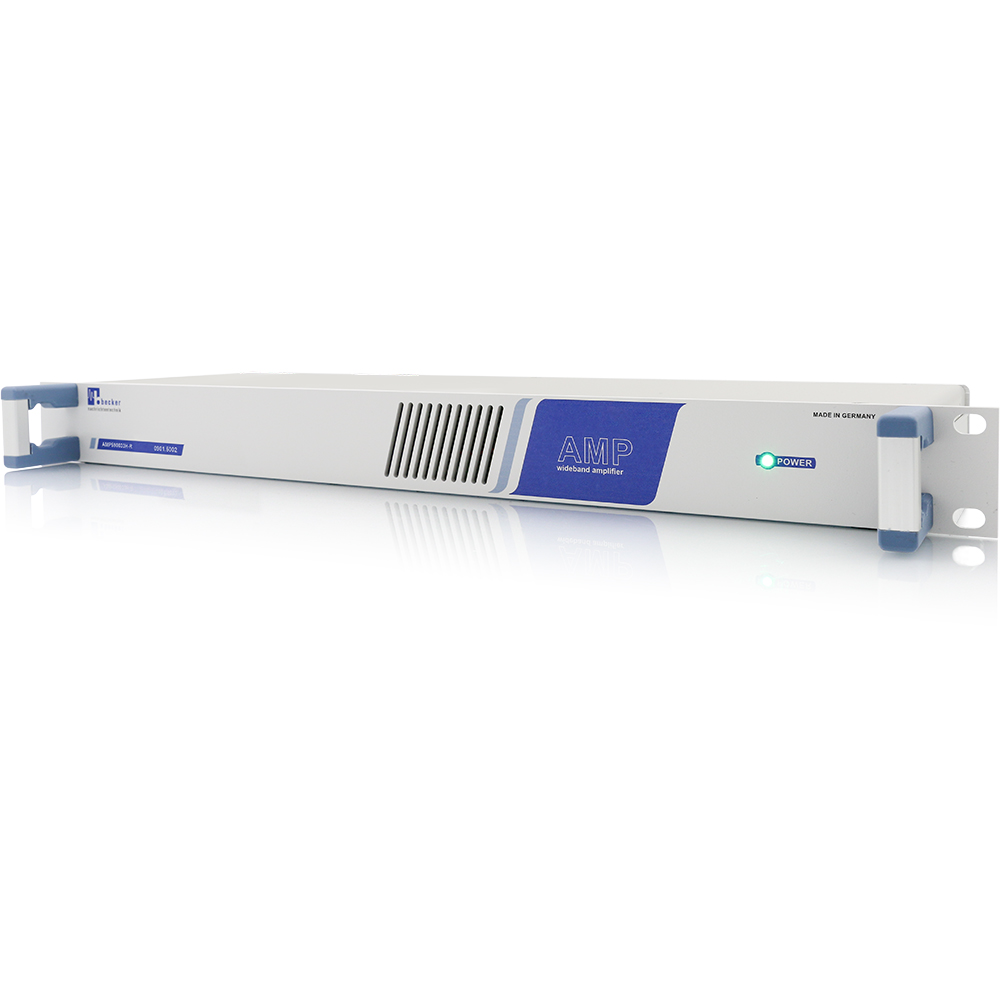

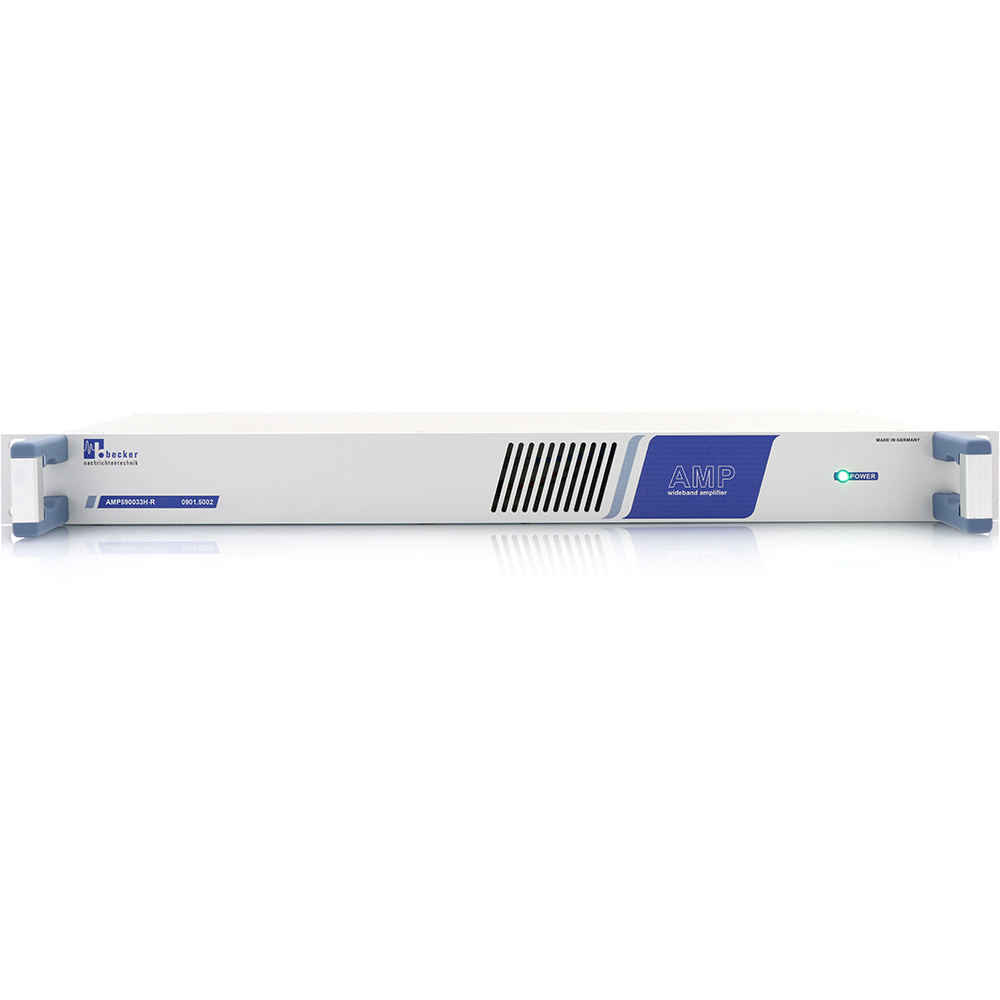

AMP590033H-R is housed in a aluminium case, which is compatible to industry suitable 19" racks. This protects the mudules against mechanical damage and gives best shielding for avoiding EMI influences caused by radio signals coming from the environment. The device is supplied by mains voltage. Thus, the amplifier can be connected without any additional equipment.

Robust at all Points

This amplifier offers excellent RF characteristics covered in a compact and robust design. In addition to the solid design of the mechanics, the amplifier is also resistant against mismatches which can occur in operation with complex loads. In physical experiments, this feature is of particular importance.
