Uni- & bi-directional Switch Matrices

100 kHz ... 8500 MHz

Becker Nachrichtentechnik offers a variety of wear-free RF switching matrices, covering:

- Various topologies: 4X4, 4X8, 8X8, custom (IN-X-OUT)

- Various switching types: distributing, uni-directional (non-blocking), bi-directional (blocking) matrices

- Various frequency ranges: shortwave (HF, up to 30 MHz), UHF/VHF (up to 4 GHz / 8 GHz), custom

Applications of these products can be found in 'radio monitoring' and 'instrumentent sharing' All 3 types of 4X4 matrices are available as slot-in modules compatible to our 'Modular RF Systems' construction kit. Thereby the customer is able to combine different products in a space saving and efficient way for any application.

Selection Guide uni-directional Switch Matrices (non-blocking)

Model

Frequency Range
MHz

Switching Type

Short Description
Application

20 ... 8000 MHz

uni-directional

extremely wideband 4X4 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, Wi-Fi, bluetooth, ISM

20 ... 8000 MHz

uni-directional

extremely wideband 4X8 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, Wi-Fi, bluetooth, ISM

20 ... 8000 MHz

uni-directional

extremely wideband 8X8 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, Wi-Fi, bluetooth, ISM

100 kHz ... 4000 MHz

20 MHz ... 4000 MHz

uni-directional

non-blocking 4X4 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, V/UHF

100 kHz ... 4000 MHz

20 MHz ... 4000 MHz

uni-directional

non-blocking 4X8 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, V/UHF

100 kHz ... 4000 MHz

20 MHz ... 4000 MHz

uni-directional

non-blocking 8X8 Switch Matrix

R&D, Radio Monitoring

broadcast, cellular, V/UHF

uni-directional

short wave 16X32 Switch Matrix

radio monitoring, military

short wave, military radio

uni-directional

short wave 4X8 Switch Matrix

radio monitoring, military

short wave, military radio

Selection Guide bi-directional Switch Matrices (blocking)

Model	Frequency Range MHz	Switching Type	Short Description Application
BSWM-4X4ER	100 kHz ... 8000 MHz	blocking bi-directional	bi-directional 4X4 Switch Matrix MIMO test, network investigation cellular, Wi-Fi, bluetooth, 4G, 5G (FR1)
BSWM-4X8ER	100 kHz ... 8000 MHz	blocking bi-directional	bi-directional 4X8 Switch Matrix MIMO test, network investigation cellular, Wi-Fi, bluetooth, 4G, 5G (FR1)
BSWM-8X8ER	100 kHz ... 8000 MHz	blocking bi-directional	bi-directional 8X8 Switch Matrix MIMO test, network investigation cellular, Wi-Fi, bluetooth, 4G, 5G (FR1)

Non-Blocking Switch Matrices up to 8 GHz

RSWM-8X8ER

RSWM-8X8ER is an extremely wideband, non-blocking switching matrix...

Non-Blocking 20 ... 8000 MHz 8 Inputs, 8 Outputs

RSWM-8X8R

RSWM-8X8R is a non-blocking matrix with high bandwidth offering 8...

Non-Blocking 20 MHz ... 4000 MHz 8 Inputs, 8 Outputs

RSWM-4X8ER

RSWM-4X8ER is an extremely wideband, non-blocking switching matrix...

Non-Blocking 20 ... 8000 MHz 4 Inputs, 8 Outputs

RSWM-4X8R

RSWM-4X8R is a non-blocking matrix with high bandwidth offering 4...

Non-Blocking 20 MHz ... 4000 MHz 4 Inputs, 8 Outputs

RSWM-4X4ER

RSWM-4X4ER is an extremely wideband, non-blocking switching matrix...

Non-Blocking 20 ... 8000 MHz 4 Inputs, 4 Outputs

RSWM-4X4R

RSWM-4X4R is a non-blocking matrix with high bandwidth offering 4...

Non-Blocking 100 kHz / 20 MHz ... 4000 MHz 4 Inputs, 4 Outputs

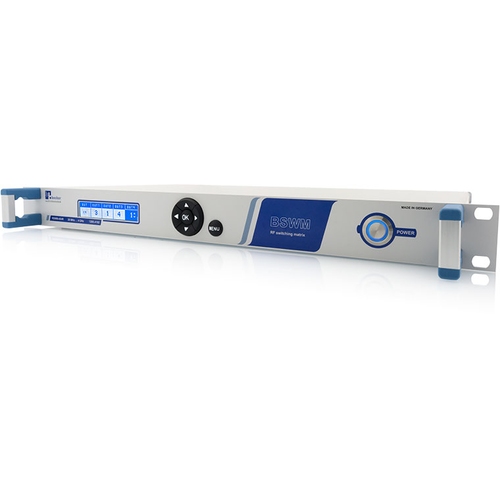

Blocking Switching Matrices up to 8 GHz

BSWM-8X8ER

Modern communication standards like cellular, WiFi, ISM and Bluetooth...

100 kHz ... 8500 MHz Bi-Directional 8 Inputs, 8 Outputs

BSWM-4X8ER

Modern communication standards like cellular, WiFi, ISM and Bluetooth...

100 kHz ... 8500 MHz Bi-Directional 4 Inputs, 8 Outputs

BSWM-4X4ER

Modern communication standards like cellular, WiFi, ISM and Bluetooth...

100 kHz ... 8500 MHz Bi-Directional 4 Inputs, 4 Outputs

Switching Matrices for Short Wave Applications

RSWM-16X32SR

The RSWM-16X32SR is a non-blocking antenna switch matrix as a key...

Non-Blocking High Dynamic 1.5 ... 30 MHz 16 Inputs, 32 Outputs

RSWM-4X8SR

RSWM-4X8SR is a non-blocking switching matrix especially designed for...

Non-Blocking High Dynamic 1.7 ... 30 MHz 4 Inputs, 8 Outputs
