Modern radio monitoring systems need an unrestricted access to many antennas from a variety of receivers. By using the non-blocking architecture of RSWM, specialized and general-purpose receivers can be used alongside each other and chose any of the available antennas without interference between the receivers. The high linearity and low noise figure of the device ensure the best signal integrity from the antenna to the receiver. Low cross-talk enables the reception of weak signals on one antenna even in the presence of strong signals on a different antenna. The large bandwidth covers most commercial communication bands, especially those travelling long distances. These include short-wave transmission at one end and private 4G/5G bands at the other end.
non-blocking 100 kHz ... 4000 MHz 8 Inputs, 8 Outputs Guided Webinterface
AC or DC Power Supply Options

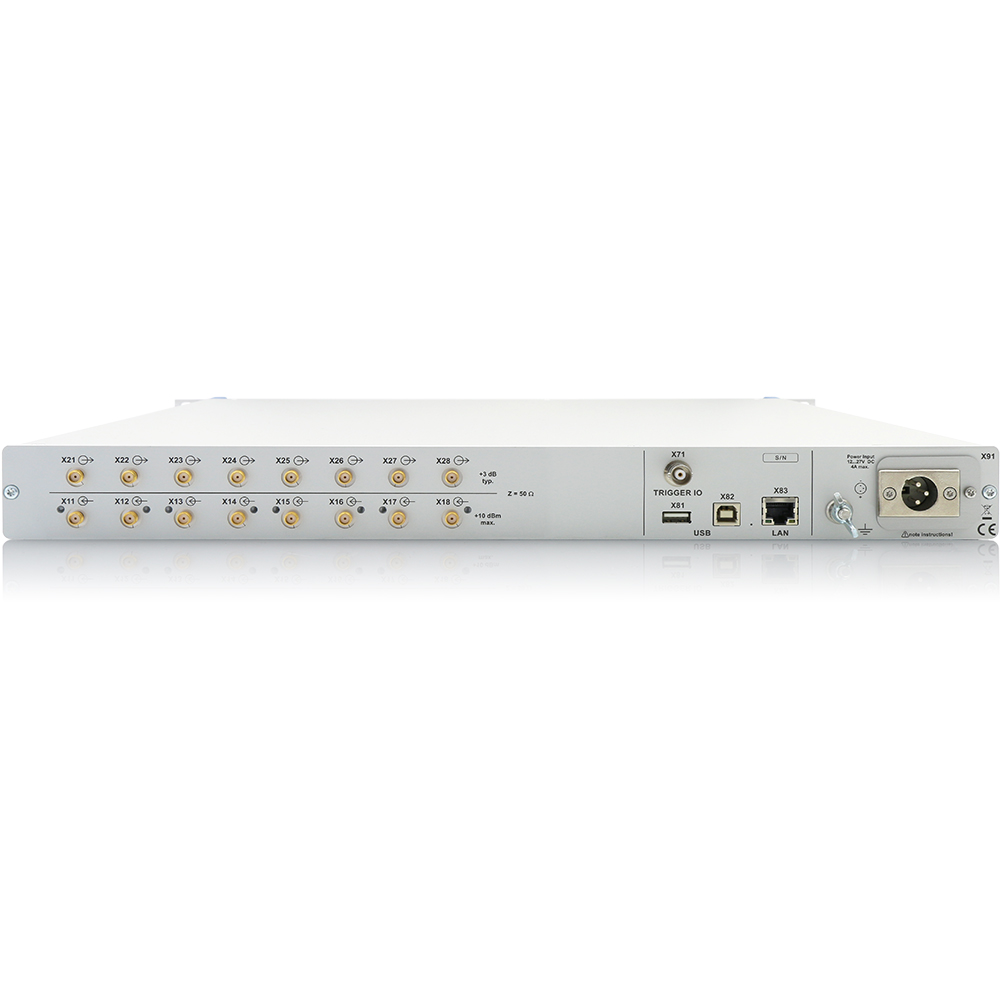

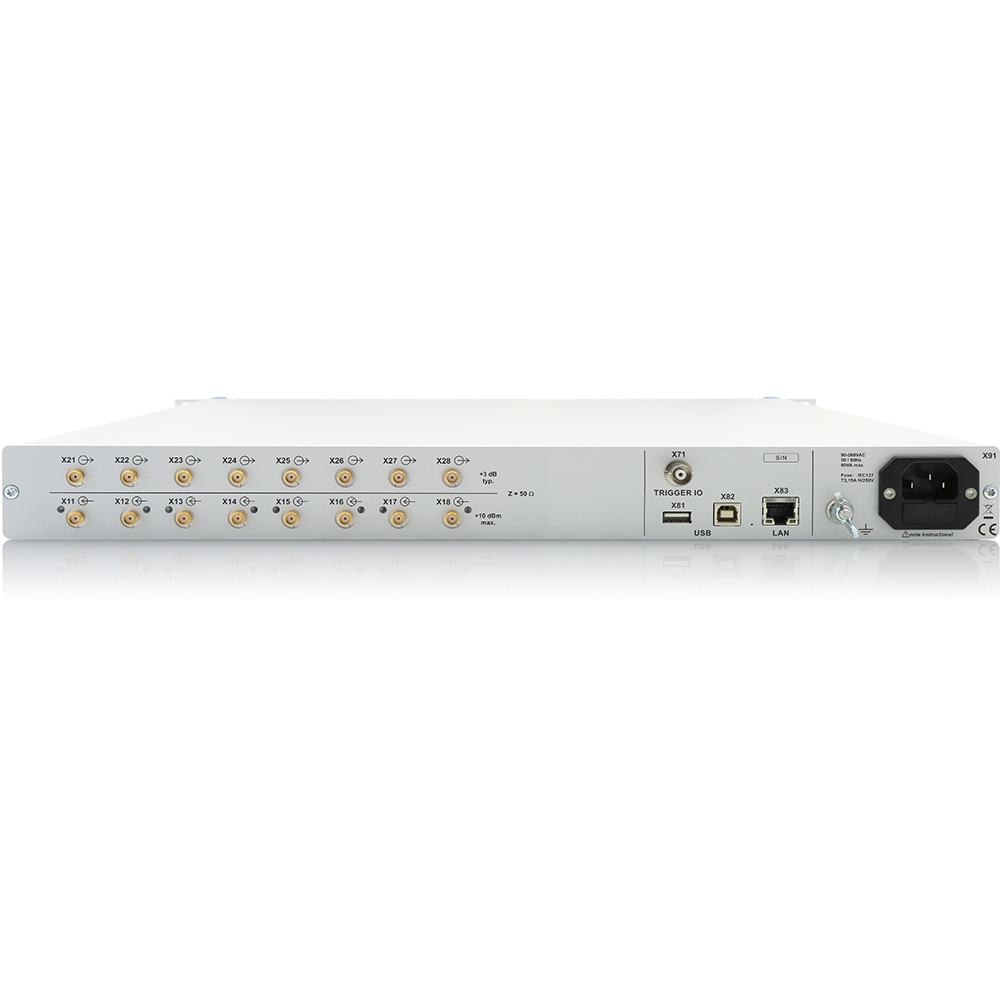

The RSWM-8X8R comes in variants designed for either DC or AC mains power supply, catering to both stationary and mobile applications. Both variants support a broad input voltage range, whether AC or DC.
Wear-free Solid State Switches
The RSWM-8X8R incorporates modern solid-state switching elements, guaranteeing rapid response to operational inputs and an unlimited number of switching cycles with minimal maintenance requirements.
High Channel Isolation
To prevent unintentional signal coupling between different signal types, the device provides high channel isolation. Strong and weak signals in adjacent radio channels do not affect each other.

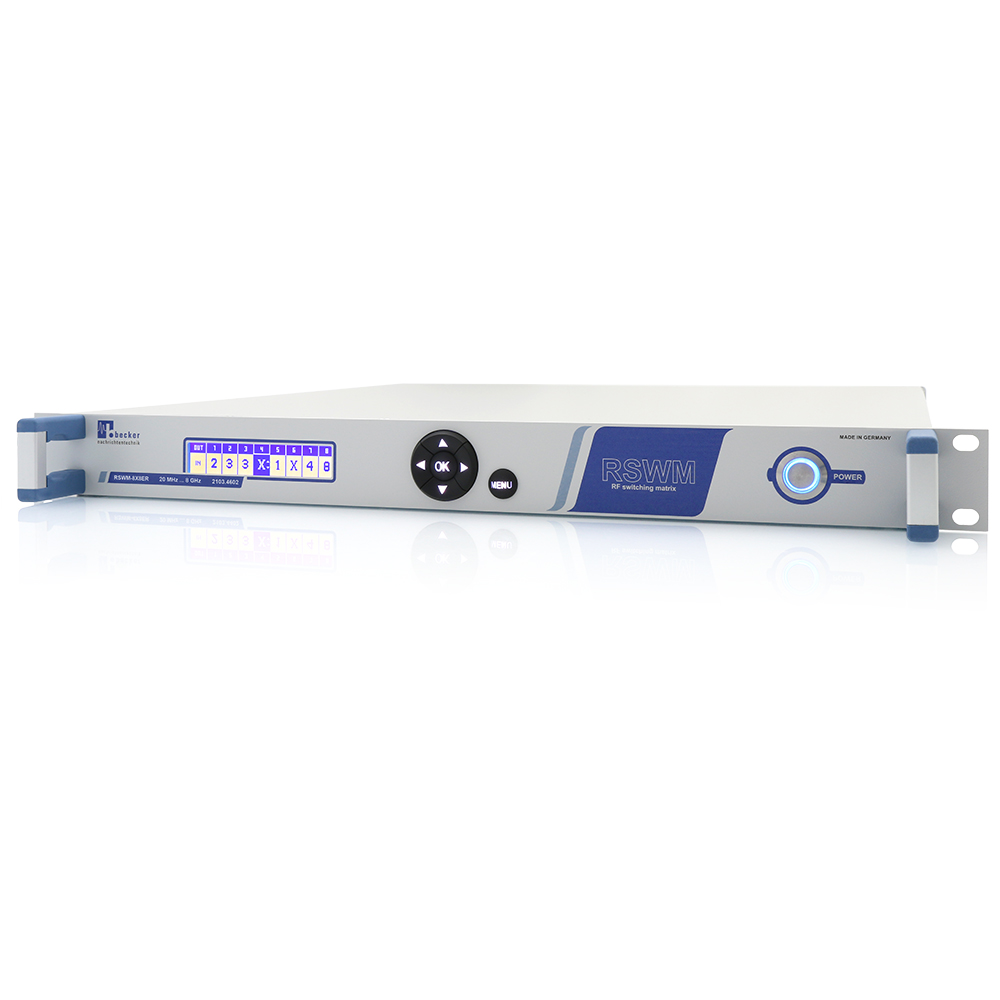

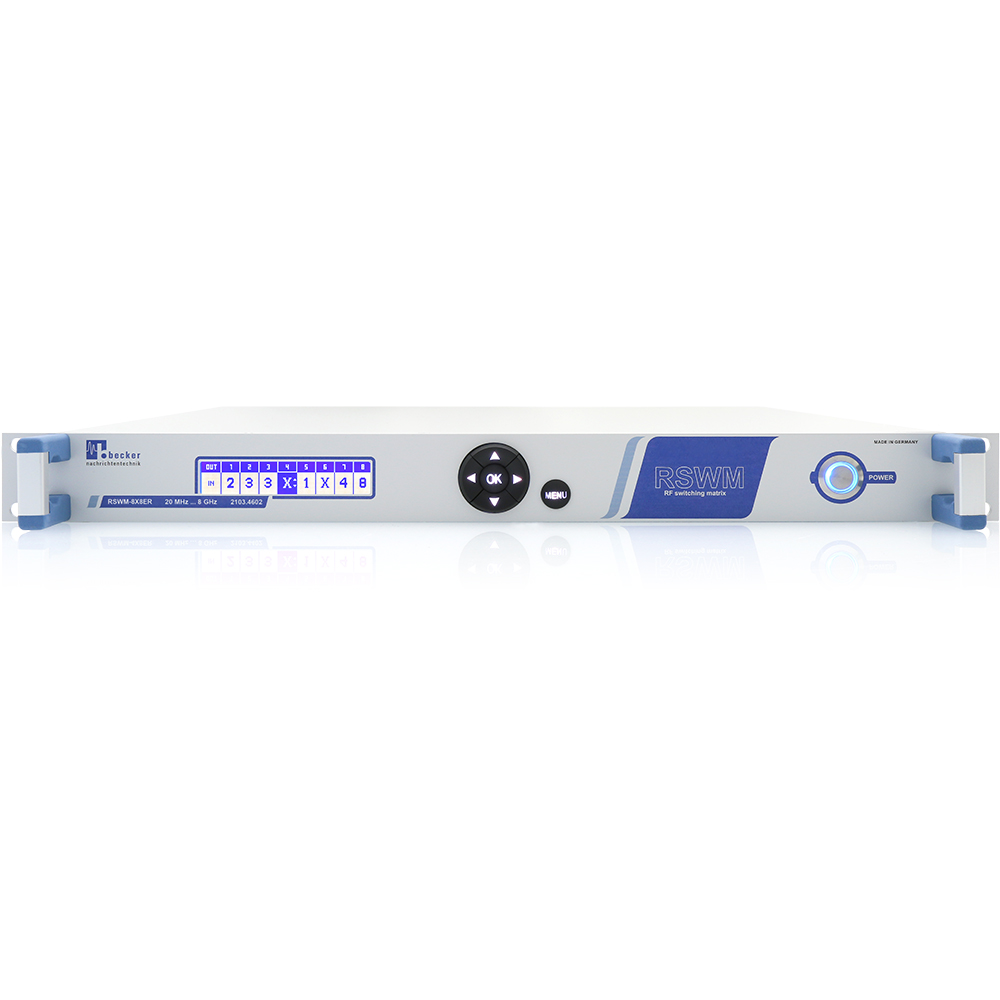

The RSWM-8X8R is equipped with multiple control options for user convenience. It features a local MMI on the front panel, as well as LAN and USB interfaces. Depending on the customer's needs, the system can be managed using the intuitive web-based graphical user interface or through SCPI-based ASCII commands via its interface ports.
The RSWM-8X8R offers two switching modes:
- Direct: every switching operation is executed after reception of the command.
- Synchronous: all switching commands are stored until a "SYNC" command executes the switching operation synchronously.
Similar to several other products from Becker Nachrichtentechnik GmbH, the RSWM-8X8R includes a TRIGGER IO port. This physical interface enables the device to execute switching operations synchronously across multiple matrices, triggered by hardware signals.
Optional High Pass Filter
The RSWM can be equipped with an optional high-pass filter designed to attenuate unwanted low-frequency (LF) and high-frequency (HF) signals, such as those from local AM radio stations.
