RF Modular Systems

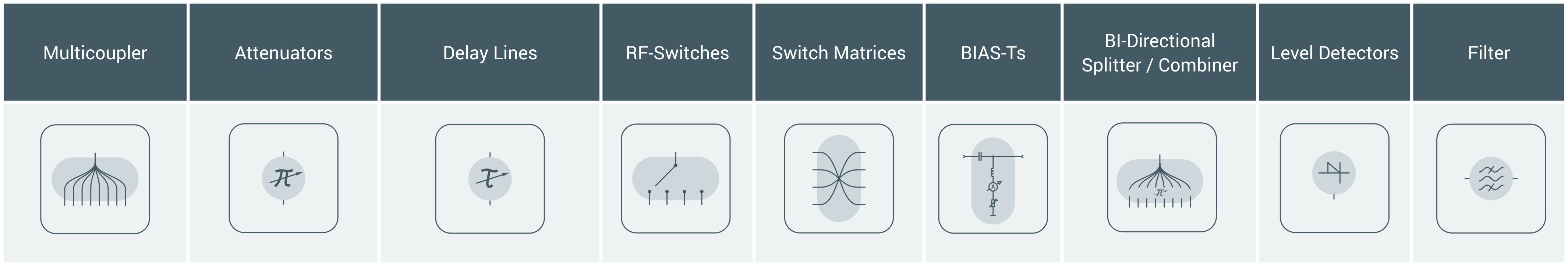

Flexible modular system for customer-specific system solutions without development and construction effort. The range of module types includes active multicouplers, adjustable attenuators, delay lines, RF switches, switching matrices, BIAS-Ts, splitters and combiners for unidirectional and bidirectional signal types. This provides solutions for unidirectional signal types such as broadcast and satellite navigation signals as well as for bidirectional signal types such as cellular and Wi-Fi.




Tabelle Übersicht Symbole Englisch neu.cdr

SR6-11C

19“, 6 U System Platform

11 Slots for modules 90 ... 260 V AC supply Trigger Interface

Detail

SR6-CU

Controller Unit

LAN/USB Interface ASCII commands Webinterface

Detail


ATT-8E

Digital Step Attenautor

8 channels 100 kHz ... 8500 MHz 0 ... 31.75 dB 0.25 dB steps

Detail

BSDU-2X4+

2 Section 4 Way plus 2 Way Wideband Splitter/Combiner

High isolation Bi-Directional 500 MHz ... 7500 MHz

Detail


BSDU-2X4A+

2 Section 4 Way Signal Conditioning plus 2 Way Wideband Splitter/Combiner

0.25 dB steps Bi-Directional 500 MHz ... 7500 MHz Variable attenuation -14 ... -109 dB

Detail

BSWM-4X4E

4x4 Switching Matrix -blocking-

High isolation Wear-free 100 kHz ... 7500 MHz Bi-Directional

Detail


DLL-4

4 Channel Programmable Delay Line

250 MHz ...4000 MHz 4 Channel 0 ... 1700 ps 5 ps steps

Detail

PT-4CL

4 Channel Wideband DC Load

100 kHz ... 8000 MHz 4 Channel BIAS-T current up to 400 mA

Detail


PT-4CS

4 Channel Programmable DC current sink

100 kHz ... 8000 MHz DC current 0 ... 400 mA 0.5 mA Steps

Detail

RSWU-4SPDTS

4 Channel SPDT Switch

100 kHz ... 8000 MHz Wear-free Non-reflective

Detail


RSWU-8SPST-CS

8 Channel SPST with DC Load Simulation

Wear-free Non-reflective 100 kHz ... 7500 MHz Open/Load/Short simulation

Detail

RSWU-8SPSTS

8 Channel Non-reflective SPST Switch

100 kHz ... 8000 MHz Wear-free Non-reflective

Detail


RSWM-4X4E

4x4 Ultra-Wideband Switching Matrix

20 MHz ... 4000 MHz Wear-free Non-blocking gain 0 dB

Detail

RFLD-8RE

8 Channel True Power RF Level Detector

8 channels 1 MHz ... 8000 MHz 38 dB Dynamic

Detail


RSWM-4X4

4X4 Switching Matrix

100 kHz … 4000 MHz Wear-free Non-blocking gain 0 dB

Detail

RSWU-2SP4TS+

2 Channel SP4T Switches plus 1 Channel SPDT Switch

100 kHz ... 8000 MHz Non-reflective configurable to SP8T Wear free

Detail


WSDU-1X8A

8 Way High Dynamic Signal Conditioning Multicoupler

100 kHz ... 4000 MHz 0.25 dB steps Variable gain -86dB ... +9 dB

Detail

WSDU-1X8L

8 Way High Dynamic Active Multicoupler

100 kHz … 4000 MHz High isolation 2.5 dB gain

Detail


WSDU-2X4A

2 Section 4 Way High Dynamic Signal Conditioning Multicoupler

100 kHz … 4000 MHz 0.25 dB steps Variable gain -86 dB ... + 9 dB 2 Channels 1x4

Detail

WSDU-2X4E+

2 Section 1x4 plus 1 1x2 Multicoupler

High isolation 20 ... 8000 MHz 3.5 dB gain Configurable to 1x8

Detail


WSDU-2X4L

2 Section 4 Way Active Multicoupler

100 kHz ... 4000 MHz High isolation 1 dB gain

Detail

Latest modification: 07.04.2020
